Wood

SCAN 1004 VE

Stylish and elegant

Description

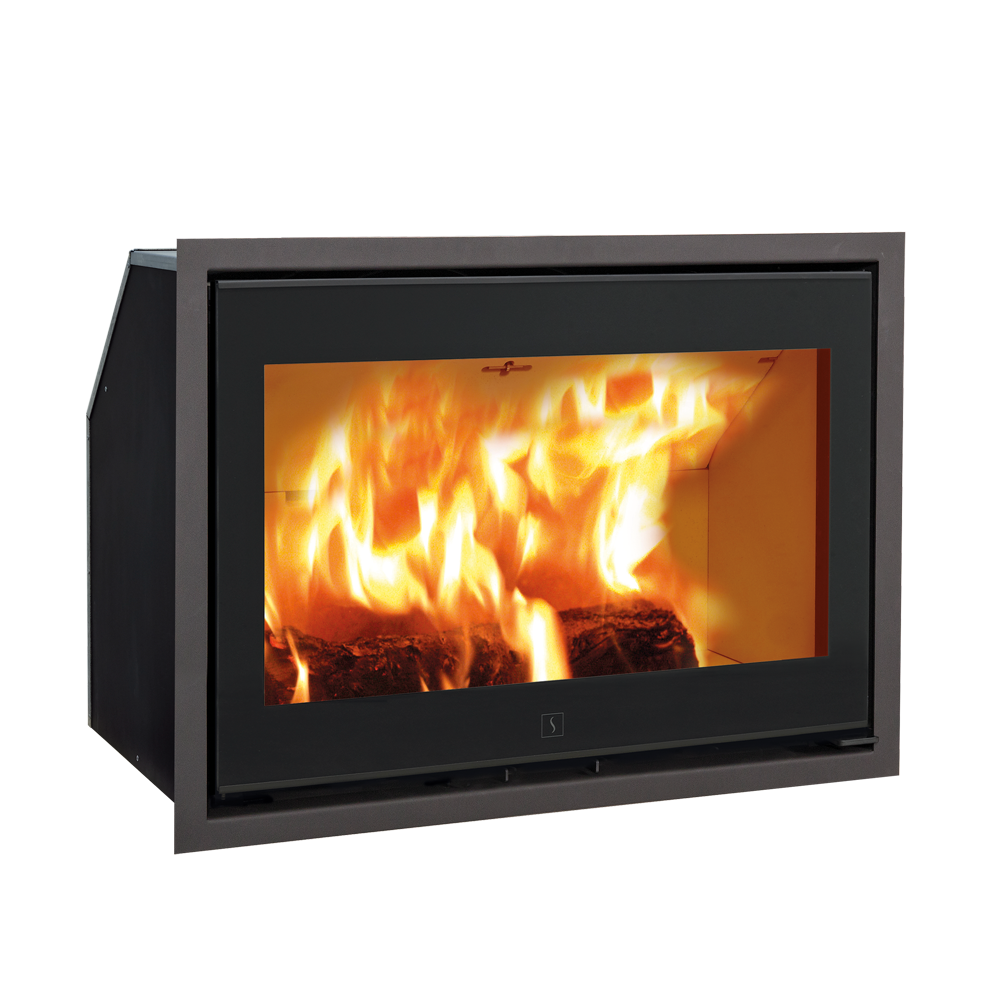

Scan 1004 is a flush insert, available with either a white glass with matt chrome trims or a black glass with black trims. Scan 1004 takes logs up to 65 cm. New: now also available with door frame in black steel!

Simple and stylish design

Size

Height: 570 mm

Width: 800 mm

Depth: 438 mm

Colors

Black paint (Selected)

Technical Specifications
Documents

Specifications

Height 570 mm
Width 800 mm
Depth 438 mm
Weight 108 kg
Log size up to 65 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 8.0 kW
Efficiency 80 %
Heating capacity up to 160 m²
CO Emission 0.07 %
Dust Product Emission 29 mg/Nm³
NOx Emission 95 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (5.78 MB)

Statement terms (276.82 KB)

Product dimensions (77.5 KB)

Exploded view and spareparts (818.73 KB)

Declaration of Performance (130.18 KB)

Declaration of Conformity (137.11 KB)

Ecolabel datasheet (49.18 KB)

Ecolabel (160.03 KB)

Declaration of Conformity (202.17 KB)

Data sheet (54.49 KB)
