SCAN 5004 FRL

Large glass panels

Description

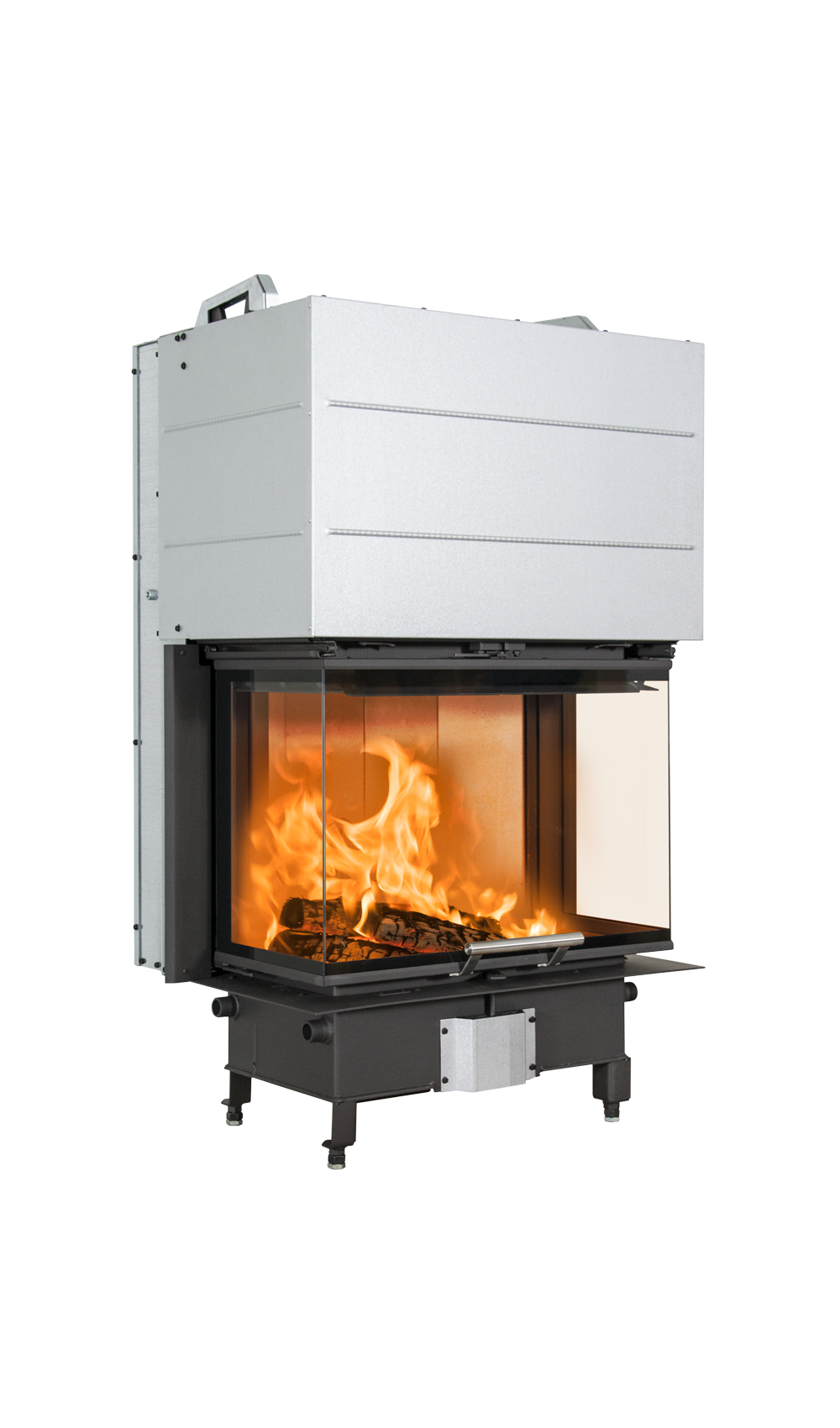

Scan 5004 FRL is a large fireplace, which will dominate your room and spread the feeling of luxury. The glass covers three sides. A high end lifting/guillotine door with soft-close mechanism leaves an exclusive impression.

Light burn plates
Large heating capacity

Size

Height: 1,342 mm

Width: 807 mm

Depth: 567 mm

Colors

Black paint (Selected)

Technical Specifications
Documents

Specifications

Height 1342 mm
Width 807 mm
Depth 567 mm
Weight 218 kg
Log size up to 40 cm
Flue outlet Ø 200 mm
Flue exit options Top / Rear

Nom output 7.8 kW
Efficiency 83 %
Heating capacity up to 160 m²
CO Emission 0.09 %
Dust Product Emission 25 mg/Nm³
NOx Emission 81 mg/Nm³
OGC Emission 35 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (4.6 MB)

Statement terms (138.85 KB)

Product dimensions (118.35 KB)

Accessories (1.06 MB)

Exploded view (1.98 MB)

Declaration of Performance (185.93 KB)

Declaration of Conformity (207.55 KB)

Ecolabel datasheet (37.33 KB)

Data sheet (77.97 KB)

Ecolabel (25.64 KB)
