Wood

SCAN 66-5

Flames are not square

Description

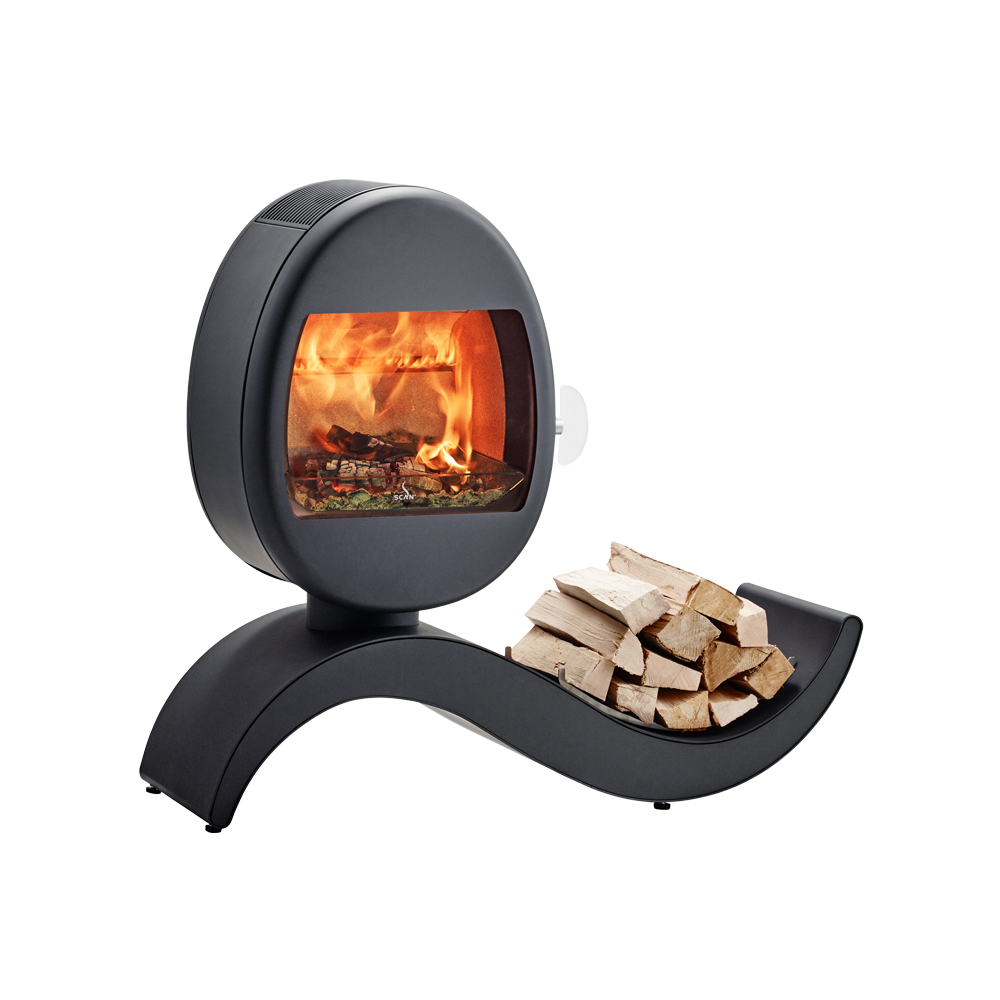

The good looking Scan 66-5 combines the stylish design of Scan 66 with a new type of base, which unites functionalism and aesthetics. You can store wood in the arch of the base, where two steel loops provide protection against scratches.

S-shaped base in black or white
Handle and air controls in glass
Prepared for closed combustion

Size

Height: 943 mm

Width: 1,037 mm

Depth: 337 mm

Colors

Black paint (Selected)

Clean burn

Closed combustion

Closed combustion

Technical Specifications
Documents

Specifications

Height 943 mm
Width 1037 mm
Depth 337 mm
Weight 100 kg
Log size up to 33 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.0 kW
Efficiency 78 %
Heating capacity up to 120 m²
CO Emission 0.03 %
Dust Product Emission 27 mg/Nm³
NOx Emission 85 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

Installation- and User Manual (8.96 MB)

Installation manual (2.19 MB)

Statement terms (241.7 KB)

Product dimensions (191.14 KB)

Exploded view and spareparts (430.17 KB)

Declaration of Performance (70.66 KB)

Declaration of Conformity (427.06 KB)

Ecolabel datasheet (34.62 KB)

Ecolabel (26.76 KB)

Data sheet (47.47 KB)
