SCAN 84 MODERN

Heat with a personal touch

Description

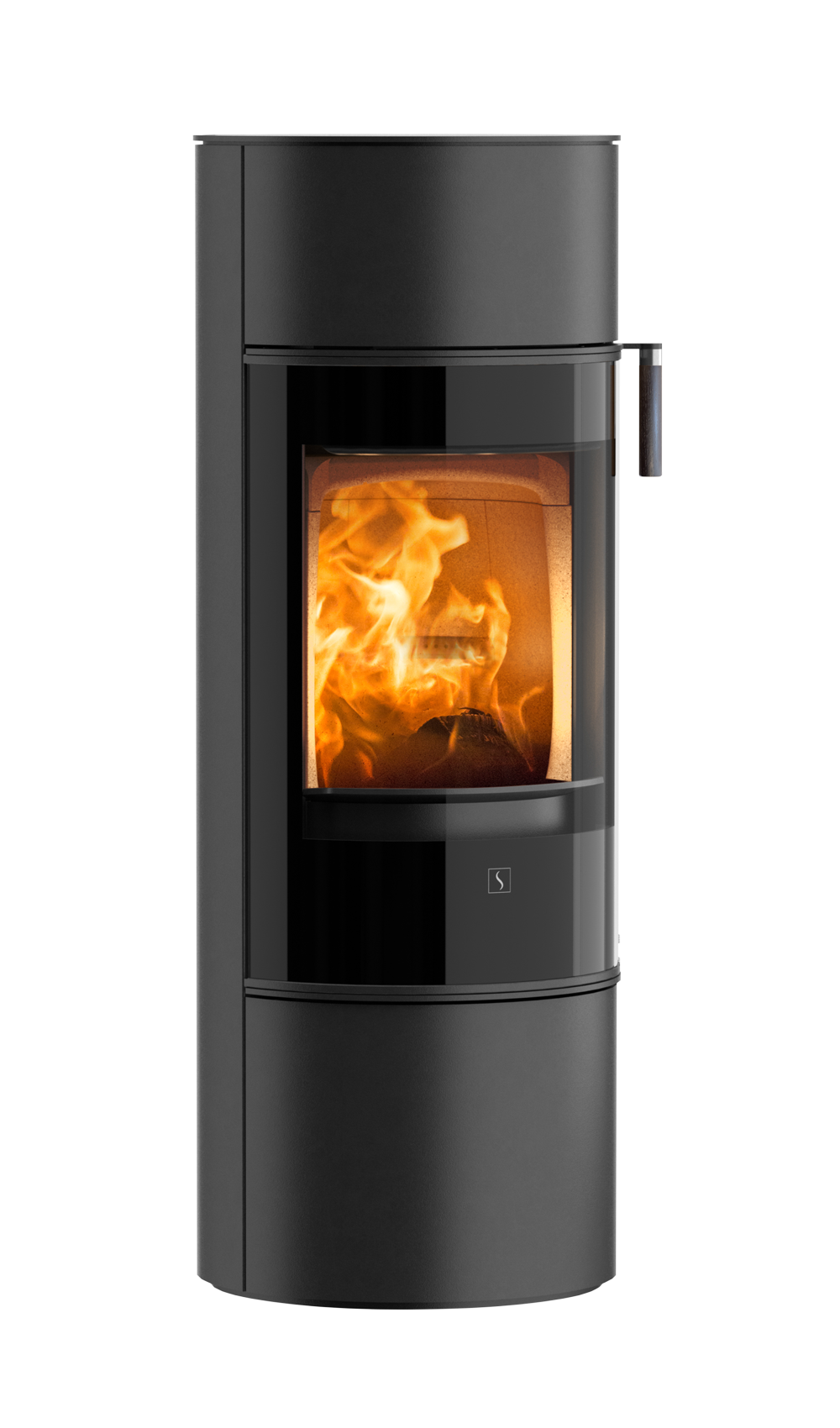

The Scan 84 series has clean lines and an almost architectural design – playful, yet discreet. The series consists of 4 models, where the variations are in the choice between two different heights and a door in exquisite black glass or steel surface. The door has a soft-close function that ensures that it closes softly and quiet. A decorative plate for the of the stove (accessory) combines the rough steel in a beautiful way with inviting and elegant black glass or soapstone.

Architectural Design
Soft-close function in door
Rough and beautiful at the same time

Size

Height: 1,250 mm

Width: 493 mm

Depth: 464 mm

Colors

Black paint (Selected)

Grey (Selected)

White (Selected)

Clean burn

Closed combustion

Technical Specifications
Documents

Specifications

Height 1250 mm
Width 493 mm
Depth 464 mm
Weight 122 kg
Log size up to 35 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.0 kW
Efficiency 81 %
Heating capacity up to 100 m²
Heating capacity cubic up to 300 m³
CO Emission 0.08 %
Dust Product Emission 22 mg/Nm³
NOx Emission 95 mg/Nm³
OGC Emission 56 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes
Ridding grate Yes
