SCAN 87 FLOOR

Like walking into a warm embrace

Description

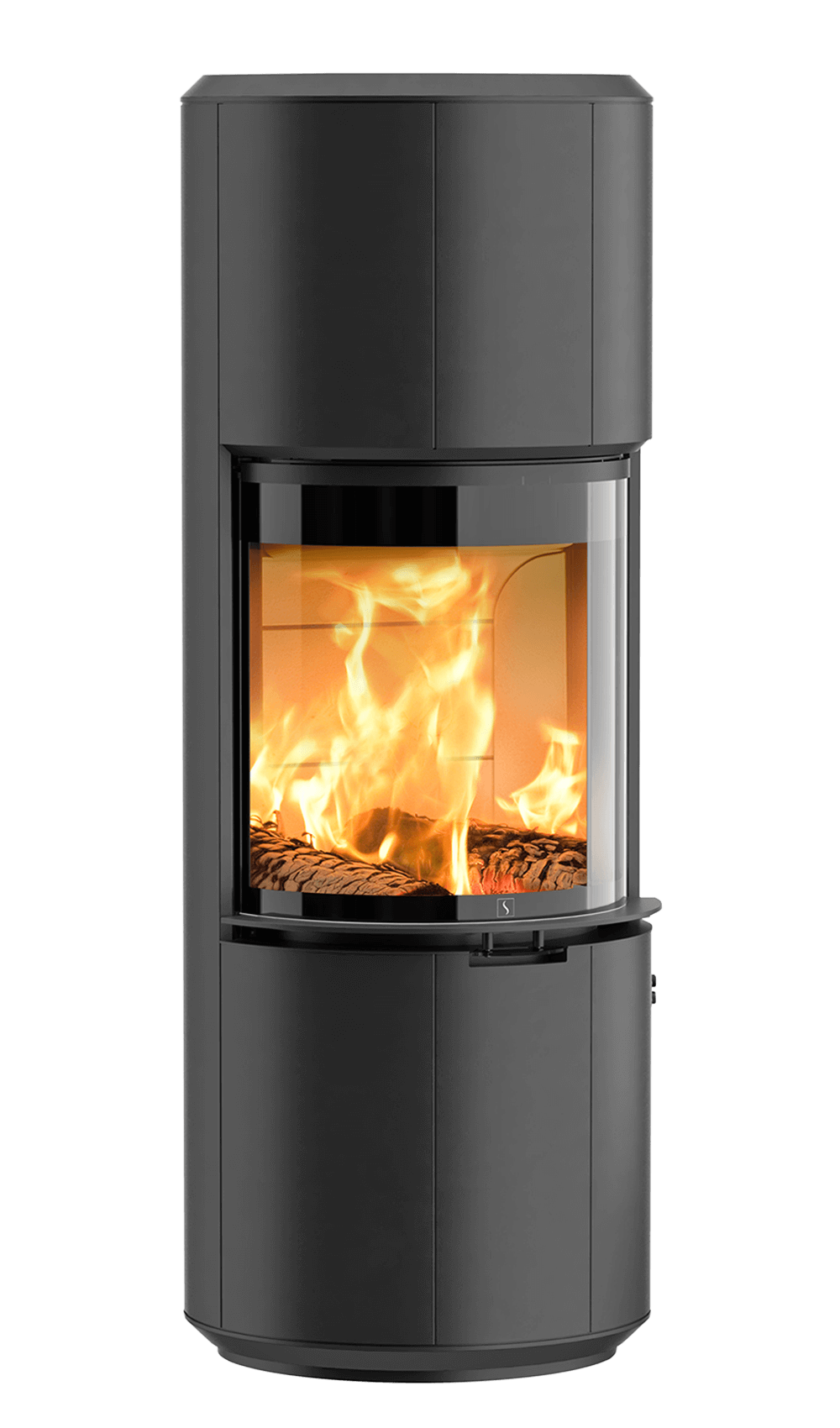

Sometimes you want go "all in". Scan 87 is a large stove that gives you lots of heat, a heavy and solid impression and becomes the natural focus of the room. The series consists of two variants; Scan 87-1 which stands as a solid bauta on the floor and the wall-mounted variant Scan 87-2 which serves flames almost picturesquely floating. The gaze is naturally drawn to the eye-catching glass guillotine door that presents the flames in a bright combustion chamber with 160 degree vision. The distinct, curved joints in the construction and the smoke colored glass details; with the cool glass handle and the rounded ash lip, offer design and functionality fused together. With a sharp focus on details, the series is well balanced between aesthetics and practical use; the air control is both intuitive and beautiful and emptying the ash is done very easily with the large ash bucket in the bottom of the combustion chamber, just lift it up and carry it away. The result is a captivating piece of furniture that is created to look good in your home, with or without flames.

160 degree view to the flames
Curved guillotine door
Large wood stove and lots of heat

Size

Height: 1,886 mm

Width: 699 mm

Depth: 630 mm

Colors

Black paint (Selected)

Clean burn

Closed combustion

Red Dot

Technical Specifications
Documents

Specifications

Height 1886 mm
Width 699 mm
Depth 630 mm
Weight 273 kg
Log size up to 40 cm
Flue outlet Ø 198 mm
Flue exit options Top / Rear

Nom output 11.5 kW
Efficiency 84 %
CO Emission 0.07 %
Dust Product Emission 27 mg/Nm³
NOx Emission 96 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

Installation- and User Manual (11.71 MB)

Statement terms (347.48 KB)

Product dimensions (299.82 KB)

Exploded view and spareparts (6.62 MB)

Declaration of Performance (174.54 KB)

Declaration of Conformity (260.08 KB)

Ecolabel datasheet (34.74 KB)

Data sheet (47.38 KB)

Ecolabel (24.04 KB)
